Diana Impex Private Limited

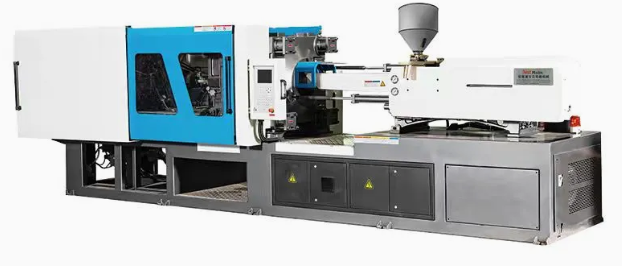

Plastic injection molding Machine consists of a plasticizing system, injection system, clamping system, and transmission system. We have been applying die-casting technologies to injection molding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, a perfect combination of dynamic pressure casting and speed. To improve the stability of syringe production, we specially add an infrared heating coil to the standard injection molding machine. In addition, we recommend adding a servo motor system, although the servo motor will increase the cost of the injection molding machine, the servo motor system has the advantage of energy saving, in long-term production, it is more economical, so nowadays more and more companies choose servo motor system.

Preparation: Manually place the test tubes in an orderly manner in the tube collection hopper, the composite cap plugs are placed in the cap bin, the foam trays are placed in the foam tray box, and put the reagents in place at the corresponding dispensing station. . Flexible tube loading →Inverted tube detection → Liquid dosing and spraying (3 sets of liquid dosing and spraying system) → Drying (2 sets) → Capping → Vacuuming → Staggered loading tray;

High automation - fully automated assembly operation, sensible and optimised integration of work processes, automatic tube loading to finished product output; the entire production line requires only one skilled operator to meet production requirements; Integrated design, optimised integration with compact footprint; modular design with high degree of standardisation, excellent overall efficiency and availability, reliable and durable automation, low maintenance requirements; High degree of human-machine dialogue - humanised workstation design, user-friendly HMI (human-machine interface) program design and display of multifunctional auxiliary operation prompts; Precise mould frame positioning, with positioning pin holes on the mould frame. After the mould frame is placed at each workstation, it can be lifted for lift positioning. Online QC sampling station, can trigger QC sampling on the HMI in automatic mode. After completion of the current execution action of injection, move to the QC sampling station for injection. On completion, QC can eject the sample for inspection. The sampling station should be easy to operate. SUS304 material sheet, frame and door sheet with nano treatment, tempered glass door, steel structure frame, high rigidity and shock absorption, welded steel structure machine base.

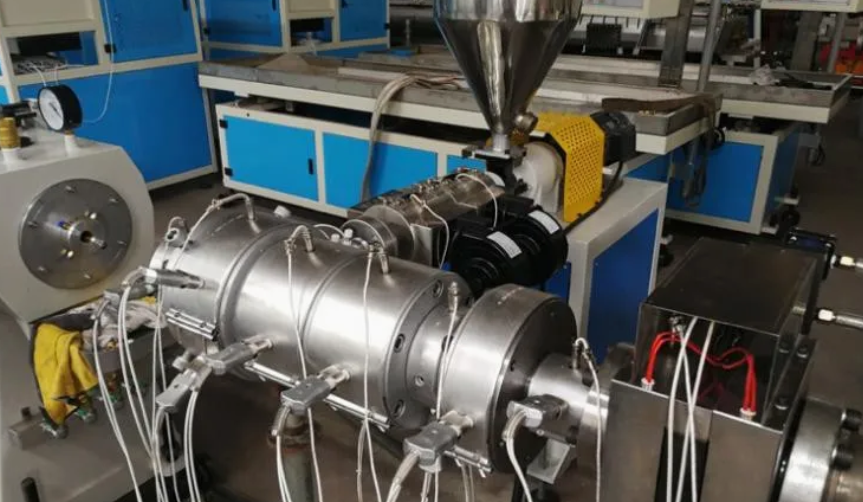

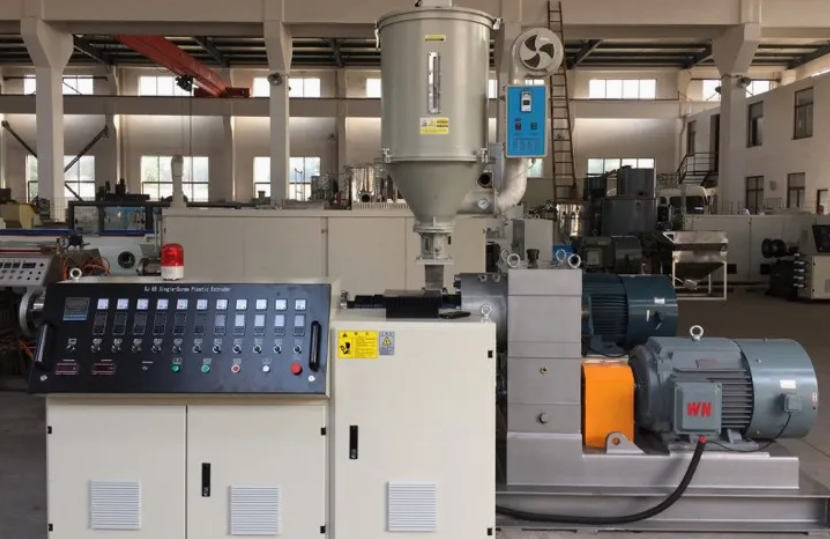

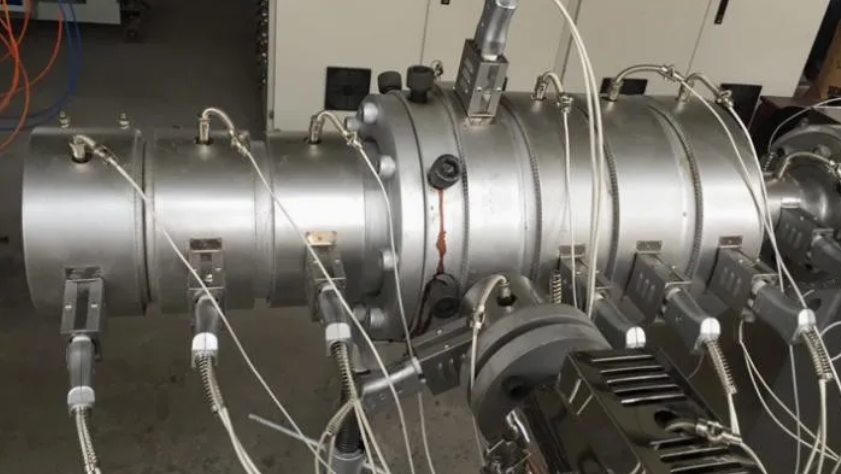

PPR pipe production machine/line, PPR water supply pipe machine, PPRGas and water supply pipe machine:Specially-designed spiral moulds for PPR pipes, with inside oil controlling temperature system.plastic machin,Extruder adopts big L/D and multi mixing structure, which is more suitable for the PPR low temperature extrusion production.with inside oil controlling temperature ,beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent,Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.The unit is of reliable performance and high production efficiency .

• High-precision medical-grade mold design
• Fully automatic operation with PLC control
• Compatible with thermoplastic materials
• Hydraulic clamping for stable production
• CE and ISO certified manufacturing standards
