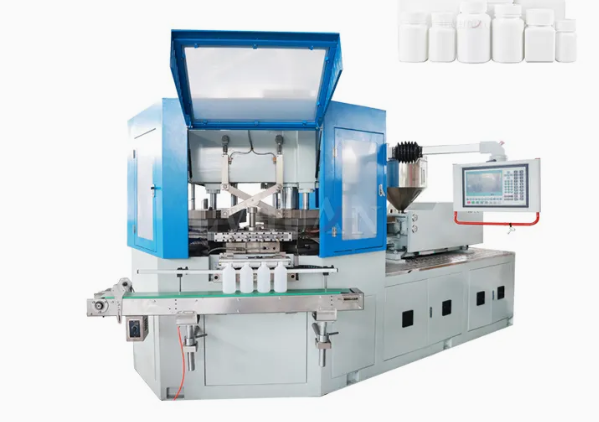

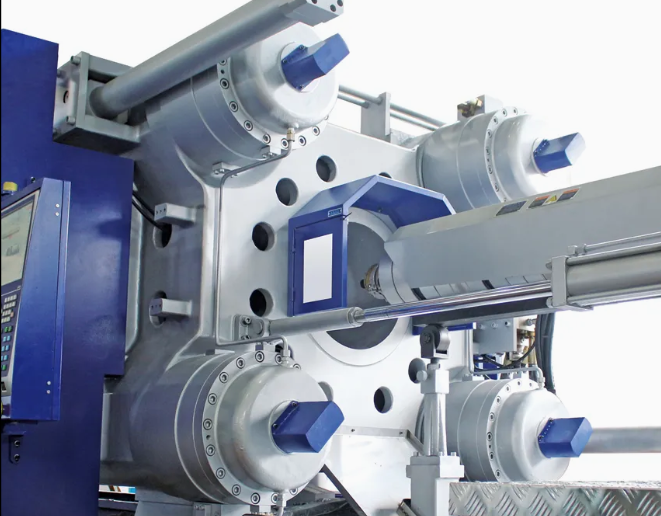

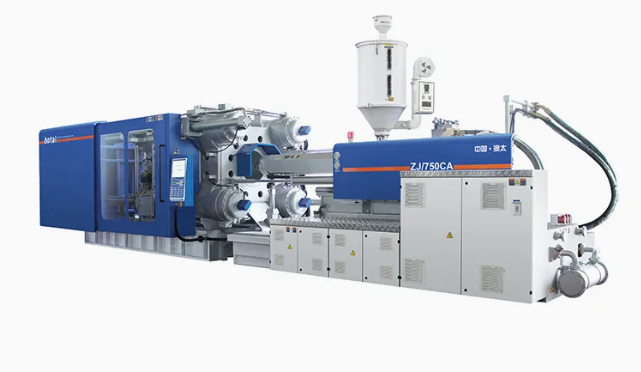

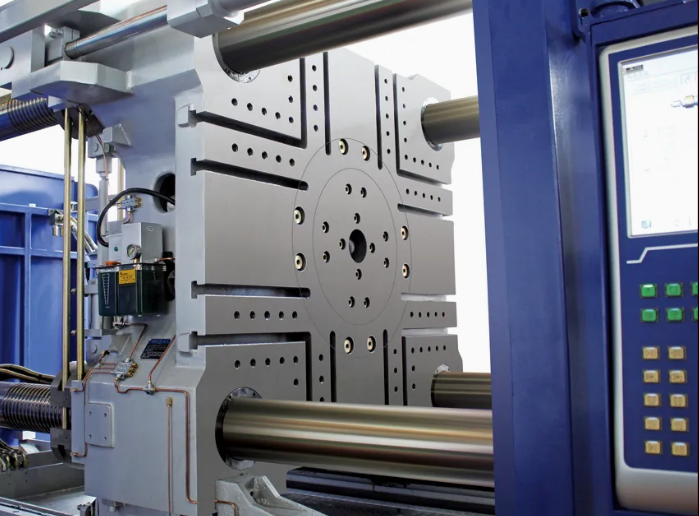

Automatic Plastic Injection Molding Machine

The Automatic Plastic Injection Molding Machine is engineered for high-precision and high-productivity manufacturing of medical, industrial, and consumer plastic components. Designed with an advanced servo-hydraulic system, it delivers fast injection speed, stable pressure, and excellent energy efficiency. The machine supports multi-cavity molds and ensures consistent part quality across each cycle.

Technical Specifications

ModelXDI-INJ-450S
Clamping Force450 Tons
Injection Capacity520 cm³
Screw Diameter55 mm
Injection Pressure1800 bar
Max Injection Speed120 mm/s
Power Requirement380V, 50/60 Hz, 3 Phase
Total Power Consumption45 kW
Machine Dimensions6800 × 1900 × 2300 mm
Machine Weight5200 kg
Control SystemPLC + Touchscreen
Cooling RequirementWater Cooling System
Automation LevelSemi / Fully Automatic
