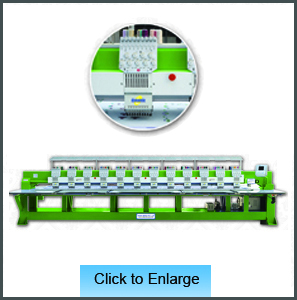

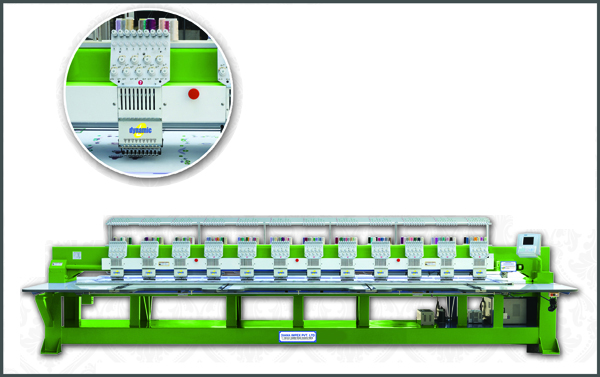

Flat Embroidery Machines

Main Features
1. Easy Operation for Color LCD display
2. Adoption of A/C servo motor reinforcing the main shaft drive and greatly
improve the smoothness of rotation as well as reliability .
3. Adoption of the advanced technology of subsection control making the
frame movement more stable and smooth , efficiently decrease the vibration and noise to the lowest level .
4. Utilization of the parts with high precision enabling the whole machine to run at high speed and further prolong its life span.
5. Adoption centralized upper thread holders to make upper thread holding action more stably and reliably.
6. Automatic,color-change, trimming, redeeming embroidery, thread breakage, checking function。
7. The build in 3.5 inch floppy disk drive or USB port available for Tajima and Barudan format。
8. The basic capacity of the system is up to 1000,000stitch (Could be extended according to customer's request) and 200 designs
9. Function of the editing designs such as zoom, deleting, duplication, cycling embroidery and bulk embroidery etc

Specifications:
1) Stitch length: 0.1-12.7mm
2) Ternary scale: 0.1-12.1mm
3) Speed: 250-850RPM
4) Motor: Servo motor x 1, stepping motor x 2
5) Memory: Normal memory is up to 1,000,000 stitch, Could be extended to 2,000,000
6) Power consumption: 1.5KW

Available Models – 1 to 42 Heads with 9 & 6 neddle option.

" **Model numbers can be changed without prior notice"
