Laser Cutting Machnes

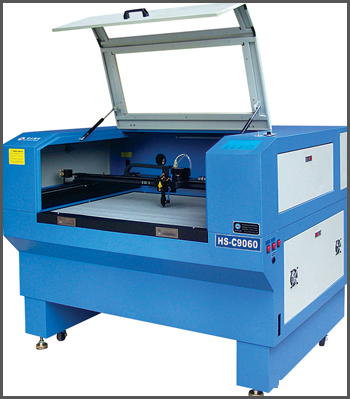

C 9060

Technical lndex:

Working Mode:cutting and engraving
Min. designs cutting area:750×500mm
Processing Area: 900×600mm
Max. cutting speed: 36000mm/min
Resolution Ratio:0.0064mm
Laser Power: 60W
Resolution Power:0.0064mm
Location precision:0.01/mm
Power supply: AC220±10% 50HZ
Gross Power:1100W
Graphic format supported:.AI, .BMP, .PLT, .PCX, .DXF, .DSTand so on;
Applicable materials: Fabric, leather, PU, acrylic, plastic and other nonmetal materials.
Applicable industries: Applicable for computerized embroidery label, irregular label, embroidery craftwork, print fabric industries for nonmetal materials artwork/patterns cutting.

1 This model will be supplied with a computer.
2. It adopts CCD camera with 3,200,000 pels and super-recognition software, ensuring the accuracy of cutting trademarks with whole area, without remaining anyone.
3. It can scan the labels and trademarks in size of 150×150mm in a whole piece. And the biggest size of design it can cut at one time is up to 750×500mm.
4. In the combinative work of pick up positioning visual system and computer software, this model can carry out overall and automatic trace compensation to the fine stretch and distortion of cloth.
5. It improves productivity greatly and it's convenient to use because of providing automatic loading and unloading system for roll and long mark spinning products.
6. The adoption of pick-up positioning system indicates that laser technology and automatic as well as man-made visual intellectual technology combined harmony. There is no question that it can be a good help for getting continuous and positive productive, and improve productivity.

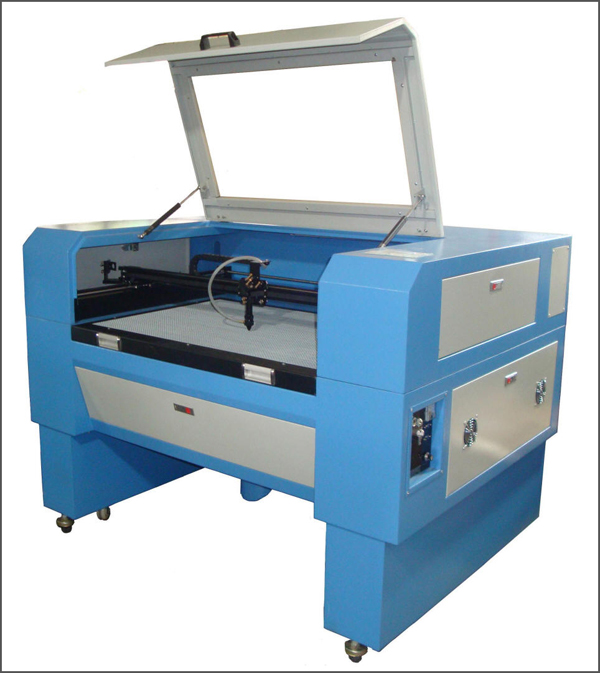

Technical Parameter:

1) Processing Area: 900x600mm/ 1200x800mm/ 1600x800mm
2) Max. cutting speed: 24000mm/min
3) Max. engraving speed: 40000mm/min
4) Laser Power: 60W/ 80W/ 100W/ 135W
5) Resolution Ratio: 0.0064mm
6) Min. Shaping Character: Chinese Character: 2x2mm, letter: 1x1mm
7) Location precision :0.01mm
8) Power supply: AC 220V±10%, 50Hz
9) Gross Power :1250W

1) The outside sliding guide ensures fast processing speed, which is especially suitable for the garment and leather industries.
2) Being integrated with more concise frame, this machine is more economical but still have the same excellent cutting and engraving effects.
3) Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness.
4) The stainless steel honeycomb platform we adopt, which is breakage-proof, ensures stable focus distance thus good cutting and engraving quality.
5) Original Singapore imported lens with molybdenum base makes the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.
6) Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years, extending the life of the laser tube.
6) This machine uses USB port to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.

" **Model numbers can be changed without prior notice"
